Titanium Gray
Product Color
Titanium Gray
Basic1
Color
Ingress Protection Rating
IPX8, IPX9, IPX9+, IP5X
Operating System
Funtouch OS 15, Based on Android 15
Android Version
Android 15
Platform
Processor
Snapdragon 8 Gen 3
CPU Core Count
8
Process Node
4nm
CPU Clock Speed
3.3GHz*1+3.0GHz*2+3.2GHz*3+2.3GHz*2
Storage2
RAM & ROM
16GB+512GB
RAM Type
LPDDR5X Ultra
ROM Type
UFS 4.1
Expandable RAM Capacity
16GB
Expandable ROM Capacity
Not supported
Battery3
Battery
6000mAh (TYP) | 5815mAh (MIN) Rated
Charging Power
80W FlashCharge.
Battery Type
Li-ion battery
Wireless Charging
Supported, 40W Wireless FlashCharge
Design4,5

Dimensions

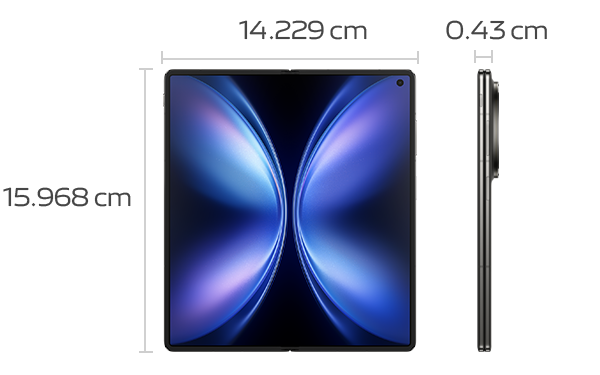

Folded: 15.968cm ×7.260cm ×0.920cm ; Unfolded: 15.968cm ×14.229cm ×0.430cm
Weight
Titanium Gray - 217g
Back Cover Material
Glass Fiber
Fingerprint Sensor Type
Supported (Side-mounted capacitive fingerprint sensor)
Display6,7
Size
Main Screen - 20.38cm (8.03”) | Cover Screen - 16.58cm (6.53”)
Resolution
Main Screen - 2480 × 2200 | Cover Screen - 2748 × 1172
Type
AMOLED (Both Displays)
Touch Screen
Capacitive multi-touch
Refresh Rate
120Hz (Cover and Main)
Local Peak Brightness
4500 nit
Color Gamut
P3
Pixel Density
Main Screen - 412 PPI , Cover Screen - 457 PPI
Network8
Card Slot
2 nano SIMs (SIM1 + SIM2)
Standby Mode
Dual SIM Dual Standby (DSDS)
2G GSM
850/900/1800/1900MHz
3G WCDMA
B1/B2/B4/B5/B6/B8/B19
4G FDD-LTE
B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B25/B26/B28/B66
4G TDD-LTE
B34/B38/B39/B40/B41/B42/B43/B48
5G
n1/n2/n3/n5/n7/n8/n12/n18/n20/n25/n26/n28/n38/n40/n41/n48/n66/n77/n78
Camera
Camera
Front 20MP FF (Cover Screen) | Front 20MP FF (Main Screen) | 50MP AF IMX921 OIS VCS + 50MP Ultra Wide-Angle AF JN1 + 50MP AF IMX882 OIS Telephoto 3x Optical Zoom, 100x HyperZoom
Aperture
Front: Cover Screen Camera - f/2.4
Main Screeen Camera - f/2.4
Rear: main f/1.57 wide-angle f/2.05 Telephoto f/2.55Flash
Rear flash
Scene Mode
Snapshot, Landscape & Night, Portrait, Photo, Super macro, Video, Portrait Video, High Resolution, Pano, Ultra HD Document, Slo-mo, Long Exposure, Time-Lapse, Supermoon, Pro, Food, Live Photo
Fill Light
Rear fill light supported
Media
Hi-Fi
Not Supported
Audio Playback
AAC、WAV、MP3、MIDI、VORBIS、APE、FLAC, M4A, OGG
Video Playback
MP4;3GP;AVI;FLV;MKV;WEBM;TS;ASF
Video Recording
Supported
Voice Recording
Supported
Video Recording Resolution
MP4
Connectivity
Wi-Fi
2.4GHz,5.0GHz
Bluetooth
Bluetooth 5.4
USB
USB Type-C, USB 3.2 Gen 1
GPS
Supported (L1;L5)
OTG
Supported
FM
Not supported
NFC
Supported
E-SIM
Not supported
Location
GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC, A-GPS, cellular positioning, Wi-Fi positioning
Sensors
Accelerometer
Supported
Color Temperature Sensor
Supported
Ambient Light Sensor
Supported
Proximity Sensor
Supported
E-compass
Supported
Gyroscope
Supported
Others
Laser focusing sensor;Air pressure sensor;Hall sensor;Infrared blaster;Flicker sensor
In the Box
Model
X Fold5
Quick Start Guide
Yes
Charger
Yes | USB Power adapter
Eject Tool
Yes
Phone Case
Yes
Protective Film (applied)
Yes
Warranty Card
Yes
Type-C Cable
Yes
SAR Value
Head SAR
0.86 W/kg
Body-worn SAR
0.85W/kg
Additional Information
Country of Origin
India
Name and Address of Manufacturer
vivo Mobile India Private Limited,PLOT NO 8, SECTOR-24, YAMUNA EXPRESSWAY AREA, GAUTAM BUDDHA NAGAR,UTTAR PRADESH - 201310, INDIA
Generic Name
Mobile phone
Net quantity
1 unit
1.This product has been tested under controlled laboratory conditions and is rated as IPX8 and IPX9 under IEC standard 60529-2013. IPX8 water resistance test conditions: Submerged in static fresh water up to 1.5 meters for up to 30 minutes, with a temperature difference between the water and the device of less than 5°C. IPX9 water resistance test conditions: A rotation speed of (5±1) rpm, nozzle angles of 0°, 30°, 60°, and 90°, a flow rate of (15±1) L/min, a water temperature of (80±5)°C, a test time of 30s/position, and the phone placed in a vertical position with the USB port facing down. This product is not a professional waterproof phone. The resistance to splashes, water, and dust is not permanent and may be reduced with daily use. Do not immerse the phone in water during daily use or expose it to solutions such as seawater or other liquids such as beverages. Do not charge the phone when it is wet; instead, clean and dry it immediately. Damage caused by liquid ingress is not covered by warranty. Based on tests performed in vivo labs, not as a quality guarantee in daily use. IP5X means the phone will not entirely prevent ingress of dust, but "it must not enter in sufficient quantity to interfere with the safe operation", according to the IP code definitions. The actual situation will vary slightly depending on the specific test environment.
2. Actual available RAM is less than 16GB due to the storage of the operating system and pre-installed apps. Actual available ROM is less than 512GB due to the storage of the operating system and pre-installed apps.
3. This product uses a dual-battery parallel design with the following typical capacities: Typical capacity: 3275mAh (3.82V) + 2725mAh (3.82V), equivalent to a single 6000mAh (3.82V) battery. Typical energy: 22.93Wh. Rated capacity: 3175mAh (3.82V) + 2640mAh (3.82V), equivalent to a single 5815mAh (3.82V) battery. Rated energy: 22.22Wh.
4. Actual dimensions may differ due to variations in processes, measurement method, and material supplies. 5. 217g excludes the weight of the cover and main display protective films. Actual dimensions and weight may differ due to variations in processes, measurement method, and material supplies.
6. Measured diagonally, the screen size is 20.38cm (8.03”) in the full rectangle. Actual display area is slightly smaller. 7. Measured diagonally, the screen size is 16.58cm (6.53”) in the full rectangle. Actual display area is slightly smaller.
8. Live network functionality is subject to carrier network availability, infrastructure support and software version of the mobile phone.
