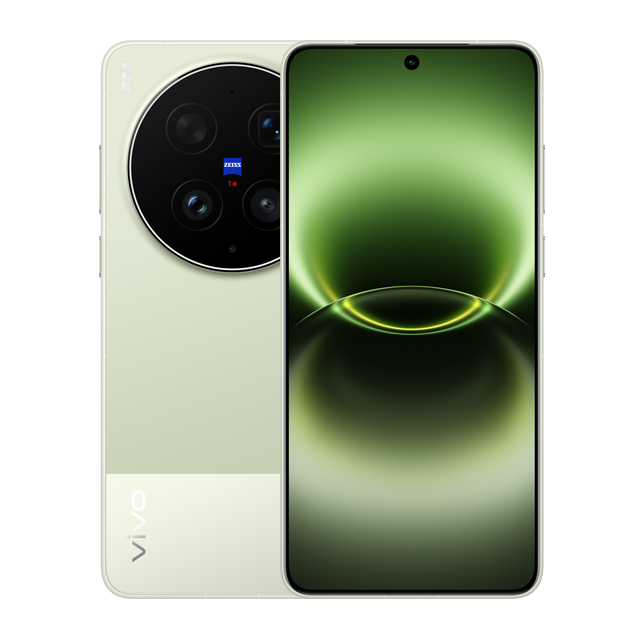

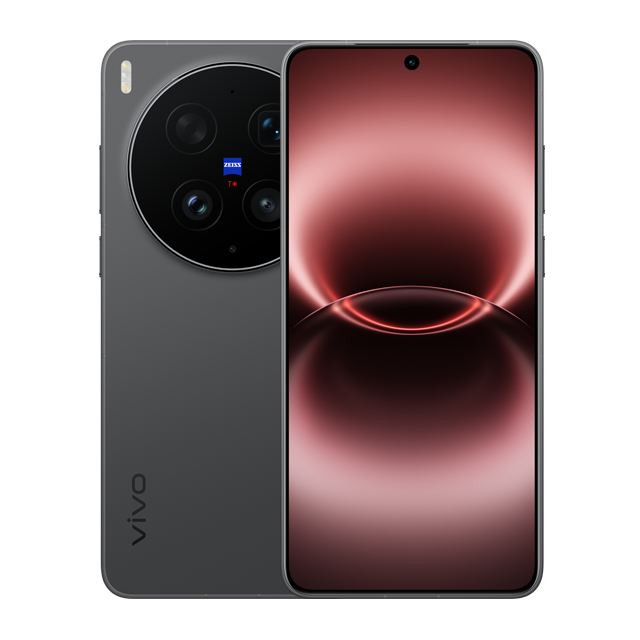

Eclipse Black, Victory Green
Product Color
Eclipse Black
Basic
Color
Ingress Protection Rating
IP68 & IP69
Operating System
OriginOS 6
Android Version
Android 16
Platform
Processor
Snapdragon® 8 Elite Gen 5
CPU Core Count
8
Process Node
3nm
CPU Clock Speed
4.6GHz*2+3.62GHz*6
Storage
RAM & ROM
16GB+512GB
*Actual available RAM is less than 16GB due to the storage of the operating system and pre-installed apps.
*Actual available ROM is less than 512GB due to the storage of the operating system and pre-installed apps.RAM Type
LPDDR5X Ultra Pro
ROM Type
UFS 4.1
Expandable RAM Capacity
16GB
Expandable ROM Capacity
Not supported
Battery
Battery
6600mAh (TYP) 6395mAh (MIN) Rated
Charging Power
100W FlashCharge.
*When paired with the original charger and data cable, the maximum supported charging power is 100W. The actual charging power is dynamically adjusted as the scene changes, and subject to actual use.Battery Type
Li-ion battery
Design3

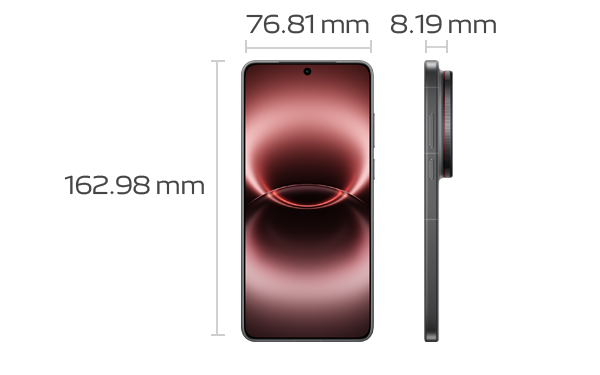

Dimensions
Thickness in cm :16.298 cm × 7.681 cm × 0.819 cm (Eclipse Black)
Thickness in cm : 16.298 cm × 7.681 cm × 0.849 cm (Victory Green)
Thickness in mm : 162.98 × 76.81 × 8.19 (Eclipse Black),
Thickness in mm : 162.98 × 76.81 × 8.49 (Victory Green)
*Actual dimensions may differ due to variations in processes, measurement method, and material supplies.Weight
232 (Eclipse Black),
237 (Victory Green)
*232 & 237g excludes the weight of the main display protective films. Actual dimensions and weight may differ due to variations in processes, measurement method, and material supplies.Back Cover Material
Glass
Fingerprint Sensor Type
3D ultrasonic single-point fingerprint sensor
Display4
Size
6.82″ (17.32 cm)
*Measured diagonally, the screen size is 6.82″ (17.32 cm) in the full rectangle. Actual display area is slightly smaller.Resolution
Main screen - 3168 × 1440 (2K)
Type
AMOLED
Touch Screen
Capacitive multi-touch
Refresh Rate
144 Hz
Local Peak Brightness
4500 nits
Color Gamut
P3 color gamut
Pixel Density
510 PPI
Light-Emitting Material
Q10 plus
Network5
Card Slot
2 nano SIMs (SIM1 + SIM2)
2G GSM
850/900/1800/1900 MHz
3G WCDMA
B1/B2/B4/B5/B6/B8/B19
4G FDD-LTE
B34/B38/B39/B40/B41/B42/B43/B48
4G TD-LTE
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B32(RX)/B66/B71
5G
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n71/n75/n77/n78/n79
Network type
5G + 5G Dual SIM Dual Active
Camera
Camera
Front:
50 MPAF
Rear:
200MP AF (OIS) - LYTIA 901 Sensor CIPA 6.5
50 MP AF Wide angle - LYT818 Sensor CIPA 6.0
200MP Telephoto(OIS) - CIPA 7.0Aperture
Front Camera - f/2.45 Rear: Main f/1.85; Wide-Angle f/2.0; Telephoto f/2.67
Flash
Dual rear flash with single color temperature
Scene Mode
Snapshot, Landscape & Night, Portrait, Photo, Video, Portrait Video, Pano, Ultra HD Document, Slo-mo, Stage, Time-lapse, Pro, Underwater Photography, Spatial Camera, Food, Scan, Street Photography
Fill Light
Rear fill light supported
Media
Hi-Fi
Not Supported
Audio Playback
AAC, WAV, MP3, MIDI, VORBIS, APE, FLAC
Video Playback
MP4; 3GP; AVI; FLV; MKV; WEBM; TS; ASF
Video Recording
MP4
Voice Recording
Supported
Video Recording Resolution
4K, 1080P
Connectivity
Wi-Fi
2.4G;5G;6G
Bluetooth
Bluetooth 6.0
USB
USB Type-C, USB 3.2
GPS
Supported
OTG
Supported
FM
Not supported
NFC
Supported
Location
GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC, GNSS feature - AGPS, cellular network positioning, wireless local area network positioning.
Sensors
Accelerometer
Supported
Color Temperature Sensor
Supported
Ambient Light Sensor
Supported
Proximity Sensor
Supported
E-compass
Supported
Motor
Linear
Gyroscope
Supported
Others
Laser focusing sensor;Hall sensor;Infrared blaster;Flicker sensor;Linear motor
In the Box
Model
X300 Ultra
Quick Start Guide
Supported
Eject Tool
Supported
Phone Case
Supported
Protective Film (applied)
Supported
Warranty Card
Supported
USB Power Adapter
Supported
SAR Value
Head SAR
1.10 W/kg
Body-worn SAR
1.12 W/kg
Additional Information
Country of Origin
India
Name and Address of Manufacturer
vivo Mobile India Private Limited,Plot No 8, Sector-24, Yamuna Expressway Area, Gautam Buddha Nagar,Uttar Pradesh - 201310, India
Generic Name
Mobile phone
Net quantity
1 unit
1. Actual available RAM/ROM is less due to the storage of operating system and pre-installed apps.
2. Extended RAM is realized by software.
3. Actual dimensions and weight may vary due to variations in processes, measurement methods, material supplies, and production batches.
4. Measured diagonally, the screen size is 17.32 cm (6.82 inches) in the full rectangle. Actual display area is slightly smaller.
5. Actual network functionality is subject to carrier network availability, applicable laws and regulations, infrastructure support, and software version of the mobile phone.
6. Pixel value may vary in different camera modes and is subject to actual usage. After accounting for distortion, the field of view is 82.3° for the front camera, 62.2° for the rear main camera, 28.3° for the rear telephoto camera, and 114.3421° for the rear wide-angle camera.
7. This product has been tested under controlled laboratory conditions and is rated as IP68 and IP69 under IEC standard 60529-2013. IP68 water resistance test conditions: Submerged in static fresh water up to 1.5 meters for up to 30 minutes, with a temperature difference between the water and the device of less than 5°C. IP69 water resistance test conditions: A rotation speed of (5±1) rpm, nozzle angles of 0°, 30°, 60°, and 90°, a flow rate of (15±1) L/min, a water temperature of (80±5)°C, a test time of 30s/position, and the phone placed in a vertical position with the USB port facing down. The resistance to splashes, water, and dust is not permanent and may be reduced due to daily use. Do not immerse the phone in water during daily use or expose it to solutions such as seawater or other liquids such as beverages. Do not charge the phone when it is wet; instead, clean and dry it immediately. Damage caused by liquid ingress is not covered by the warranty.
8. This product supports Bluetooth and Type-C digital wired earphones, but not analog wired earphones. If you need to use Type-C earphones, please confirm that they are digital. We recommend contacting your earphone supplier for verification. To use analog earphones with a 3.5 mm jack, you will need a Type-C adapter with a built-in digital-to-analog converter (DAC). The adapter needs to be purchased separately. Actual usage may vary by earphone model and protocol.
9. Using a regular third-party tempered glass protective film may interfere with ultrasonic fingerprint recognition. For optimal performance, use the original film provided by the manufacturer.
