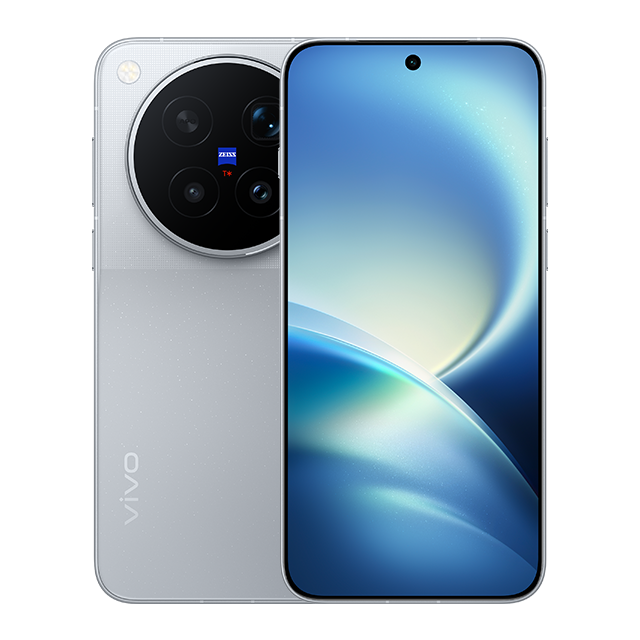

Black, Gray
Product Color

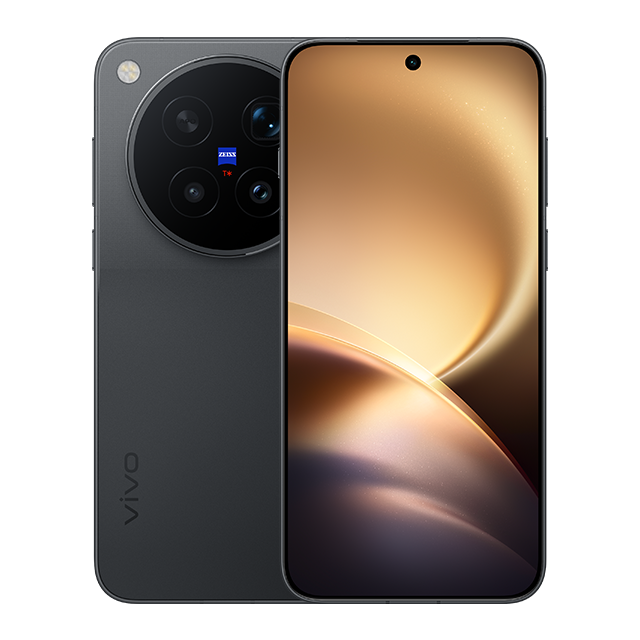

Black
Product information sheet
Basic7
Color
Ingress Protection Rating
IP68, IP69
Operating System
OriginOS 7
Android Version
Android 17
Platform
Processor
Dimensity 9600 Pro
CPU Core Count
8
Process Node
2 nm
CPU Clock Speed
2 × 4.55 GHz + 3 × 4.35 GHz + 3 × 3.1 GHz
Storage1
RAM & ROM
12 GB + 256 GB / 12 GB + 512 GB / 12 GB + 1 TB
RAM Type
LPDDR5X Ultra
ROM Type
UFS 4.1
Expandable RAM Capacity
24 GB
Expandable ROM Capacity
Not supported
Battery2
Battery
This product features dual cell connected in parallel:
Typical capacity: 3375 mAh (3.80V) + 3375 mAh (3.80V), equivalent to a single battery with a capacity of 6750 mAh (3.80V)
Typical energy: 25.65 Wh
Rated capacity: 3285 mAh (3.80V) + 3285 mAh (3.80V), equivalent to a single battery with a capacity of 6570 mAh (3.80V)
Rated energy: 24.97 WhCharging Power
90W FlashCharge + 40W Wireless FlashCharge
Battery Type
Li-ion battery
Design

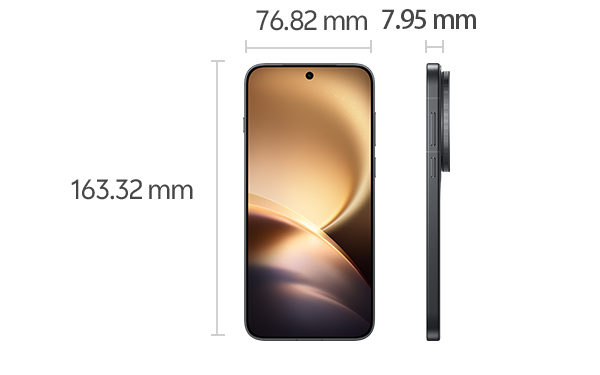

Dimensions
163.32 mm × 76.82 mm × 7.95 mm (Black and Eternal Black)
163.32 mm × 76.82 mm × 8.12 mm (Gray)Weight
Europe: 224g (Black), 228g (Gray)
Back Cover Material
Glass fiber (Black), glass (Gray)
Fingerprint Sensor Type
3D ultrasonic single-point fingerprint sensor
Display3,4
Size
6.85″ (17.42 cm)
Resolution
3168 × 1440
Refresh Rate
1–144 Hz
Local Peak Brightness
4400 nits
Color Gamut
P3 wide color gamut supported
Pixel Density
507 PPI
Light-Emitting Material
Q11
Type
AMOLED
Touch Screen
Capacitive multi-touch
Network5,9
2G GSM
850/900/1800/1900 MHz
3G WCDMA
B1/B2/B4/B5/B6/B8/B19
4G FDD-LTE
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B32/B66/B71
4G TD-LTE
B34/B38/B39/B40/B41/B42/B43/B48
5G
n1/n2/n3/n5/n7/n8/n12/n20/n25/n26/n28/n38/n40/n41/n66/n71/n75/n77/n78/n79
Card Slot
2 nano SIMs
Standby Mode
Note: Dual SIM Dual Active is supported only with certain band combinations and is subject to the carrier's SA and VoNR deployment. The availability of SA and VoNR depends on the network and software version.
Camera8
Camera
Front 50 MP / Rear 50 MP + 50 MP + 200 MP
Aperture
Front f/2.0 (50 MP) / Rear f/1.57 (50 MP) + f/2.0 (50 MP) + f/2.67 (200 MP)
Flash
Rear flash
Scene Mode
Front main camera: Portrait, Photo, Video, Portrait Video, AI Creation, Live Streaming
Rear main camera: Moment, Landscape & Night, Portrait, Photo, Video, Portrait Video, Pano, Ultra HD Document, Slo-mo, Stage, Time-lapse, Pro Photo, Snapshot, Food, Spatial Camera, Pro Video, AI Creation, Live Streaming
Rear wide-angle camera: Landscape & Night, Photo, Video, Portrait Video, Ultra HD Document, Stage, Time-lapse, Pro Photo, Pro Video, AI Creation, Live Streaming
Rear periscope camera: Moment, Landscape & Night, Portrait, Photo, Video, Portrait Video, Ultra HD Document, Slo-mo, Stage, Time-lapse, Pro Photo, Snapshot, Pro Video, AI Creation, Live Streaming
Media
Hi-Fi
Not supported
Audio Playback
AAC, WAV, MP3, MIDI, VORBIS, APE, FLAC
Video Playback
MP4, 3GP, AVI, FLV, MKV, WEBM, TS, ASF
Video Recording Resolution
8K, 4K, 1080P
Video Recording
MP4
Voice Recording
Supported
Connectivity6
Wi-Fi
Wi-Fi Display, 2×2 MIMO, MU-MIMO, Wi-Fi 6, Wi-Fi 7, 2.4G & 5G dual band, 2.4G & 6G dual band
Bluetooth
Bluetooth 6.0
USB
USB 3.2
GPS
Supported
OTG
Supported
NFC
Reader/writer mode, card emulation mode (including payment using HCE and NFC-SIM)
*The SIM card used for SIM card payment must be inserted into the SIM 1 slot.FM
Not supported
Location
A-GPS, cellular network positioning, Wi-Fi positioning
Sensors
Accelerometer
Supported
Ambient Light Sensor
Dual Ambient Light Sensor
E-compass
Supported
Proximity Sensor
Supported
Color Temperature Sensor
Supported
Motor
Ultra-Haptic X-Axis Linear Motor
Gyroscope
Supported
Others
Ultra-sensing flicker sensor, multispectral sensor, camera matrix laser focusing sensor, hall sensor, infrared blaster
In the Box
Model
X500 Pro Max
Quick Start Guide
Included
USB Cable
Included
Charger
Not included
Eject Tool
Included
Phone Case
Included
Protective Film (applied)
Included
Warranty Card
Included
1. Actual available RAM/ROM is less due to the storage of the operating system and pre-installed apps.
2. 90W FlashCharge refers to the maximum output power of the vivo standard charger, which is 90W. Actual charging power is dynamically adjusted as the scene changes and subject to actual usage. <br/> 40W Wireless FlashCharge means that the phone supports up to 40W of wireless charging when used with the standard charger and USB cable, as well as vivo 50W Vertical Wireless Flash Charger 2 (or iQOO 50W Vertical Wireless Charger 2). Actual charging power is dynamically adjusted as the scene changes and subject to actual usage. Please note that this product is not compatible with first-generation vivo 50W Vertical Wireless Flash Charger (or iQOO 50W Vertical Wireless Charger).
3. Actual dimensions and weight may vary due to variations in processes, measurement methods, and material supplies.
4. Measured diagonally, the screen size is 6.85″ in the full rectangle. The actual display area is slightly smaller.
5. Actual network functionality is subject to carrier network availability, applicable laws and regulations, infrastructure support, and software version of the mobile phone.
6. Actual Wi-Fi functionality may vary by regional availability and local network support.
7. This product has been tested under controlled laboratory conditions and is rated as IP68 and IP69 under IEC standard 60529. The resistance to dust and water is not permanent and may be reduced with daily use. Please avoid liquid ingress to prevent damage.
8. Pixel value may vary in different camera modes and is subject to actual usage.
